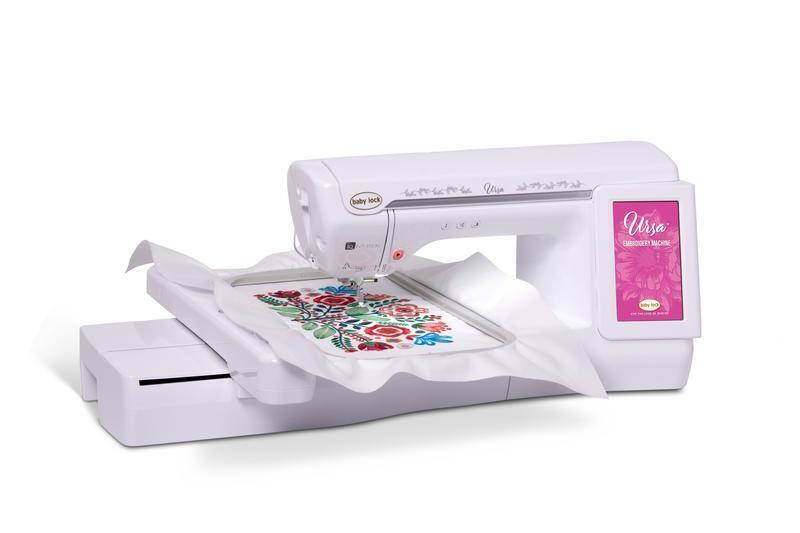

URSA **New

Bring your embroidery to life with accuracy and ease using the

Baby Lock Ursa™. Place designs exactly where you want them in the large

embroidery area, and explore creative possibilities with dimensional,

textured details that make every project stand out.

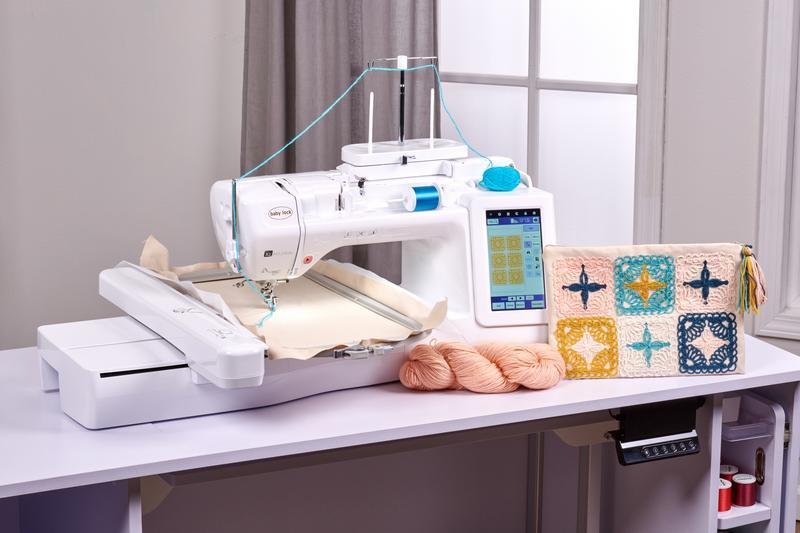

Couching Font and Crochet Couching

Add dimension and texture to your embroidery

projects with Ursa’s embroidery couching alphabet

or crochet couching designs.

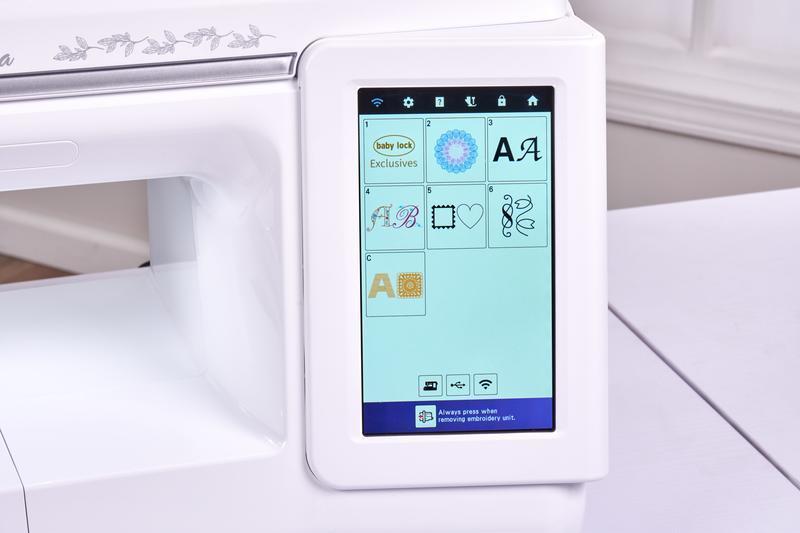

914 Built-In Embroidery Designs

You’ll always have something to embroider with

Ursa's wide-range selection of built-in designs.

Categories include Quilting, French Knot, Couching,

7 large decorative fonts, 23 standard fonts, Crochet

Lace, 3-D Applique, and more.

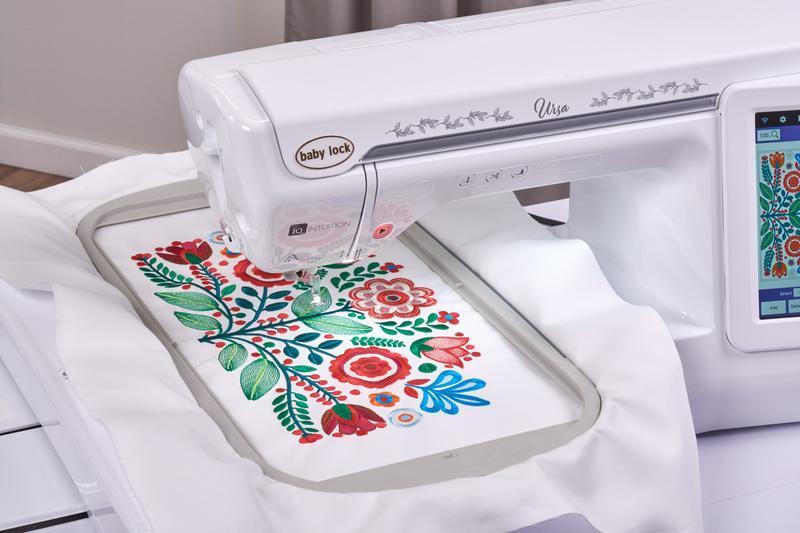

8" x 14” Embroidery Field

Embroider larger designs without having to

re-hoop your fabric with the 8" x 14"

(200mm x 360mm) hoop.

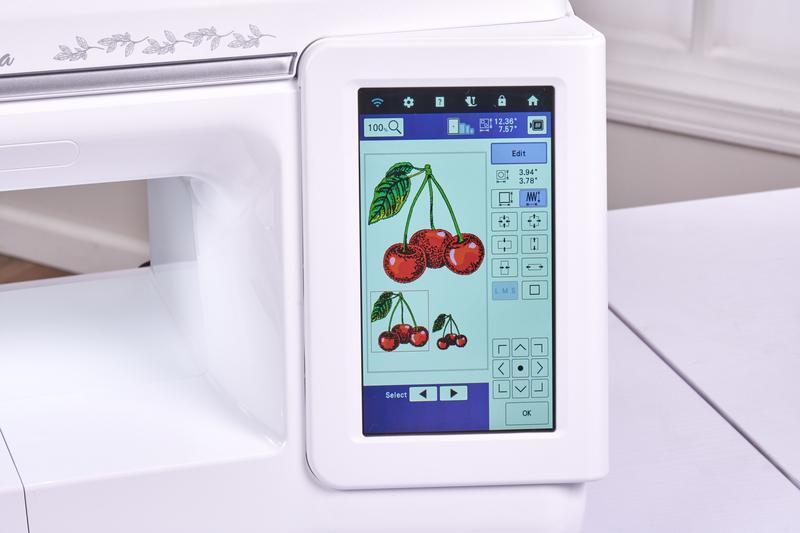

Resizing with Stitch Recalculation

Ursa’s editing tools allow most embroidery

designs to be sized down to 60% or sized up

to 200% with consistent density as the

stitches are recalculated.

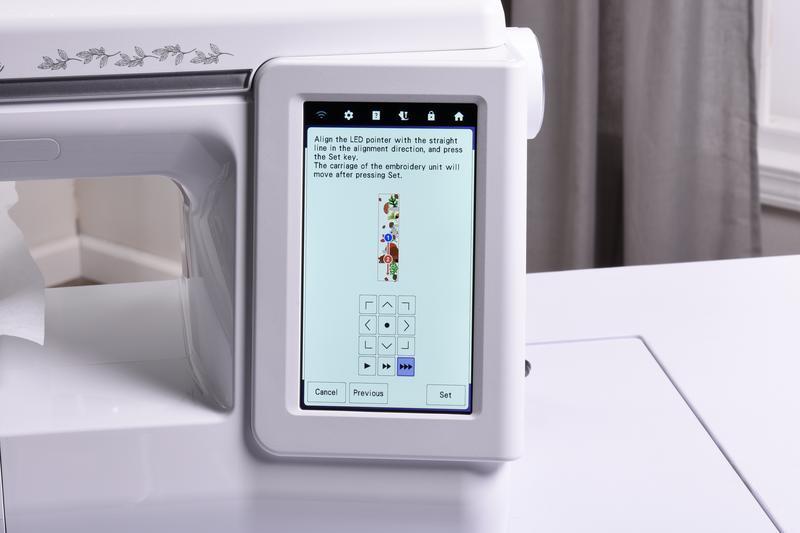

2-Point Positioning

Use the Needle Beam to check various points of

your embroidery design. For projects requiring

placement or alignment, use the 2-point positioning

function to automatically move and rotate your

design into position.

WLAN Capabilities

Ursa’s WLAN features allow you to update the

machine’s software, transfer designs from Design

Database Transfer (a free download) and Palette 11

(separate purchase), and monitor your project using

the IQ Intuition Monitoring® app.

Convenient Features:

Easy removal of metal needle plate

Quick-Set top-loading bobbin with

thread sensor

Advanced Needle Threading System

Automatic thread cutter (with on/off

capability)

Matrix copy in embroidery

WLAN connectivity for machine updates

and design transfers

Needle Beam

IQ Intuition Monitoring® App

Included Accessories:

Bobbins (10)

Touch pen (stylus)

2 thread spool stand for larger cones and yarn couching

Embroidery Foot “UH+” with LED pointer

Embroidery couching foot Y with guide

Bobbin center pin for use with

prewound bobbins

Embroidery needle plate cover

8" x 14" (200mm x 360mm) Embroidery FrameSet

5" x 7" (130mm x 180mm) Embroidery Frame Set

Specifications

On-screen Editing: Yes
Total USB Ports: 1
Built-in Fonts: 23
Number of Needles: 1
Embroidery Pattern Memory: Yes
Embroidery Speed: 850 SPM
Number of Included Hoops: 2
Rotation Capability: Yes
Cobmine Designs: Yes
Data Input Types: .pes, .phc, .dst
Frame Patterns: 140
Built-In Designs: 914
Maximum Embroidery Field: 8" x 14"
Machine Weight Only: 28 lbs (12.4kg)
Weight with Embroidery Unit: 36 lbs (16.2kg)
Throat Space: 10"
Presser Foot Type: Snap On
Needle Threader: Yes
Variable Speed Control: Yes
Programmable Needle Up/Down: Yes
Accessory Storage: No
Extension Table: No
Included Feet: 2
Mirror Image Capability: Yes
Multiple Languages: 12
Bobbin Loading: Quick Set, Top Loading
Auto Needle Up/Down: Yes
Thread Cutter: Automatic
Touch Screen: Yes
Color Screen: Yes
Lighting: 4 LED lights
Screen Size: 7" diagonal
Machine Only Height: 11-7/32" (285mm)
Machine Only Width (side to side): 21-23/32" (552mm)
Machine Only Depth (front to back): 12-21/32" (310mm)
