Create with confidence using the Baby Lock Luna, designed to make
every project effortless. Enjoy a wide range of stitches and designs,
smooth curved sewing, and built-in guidance to help keep everything
perfectly on track. With easy design placement and a large embroidery area,
bringing your ideas to life has never been simpler.

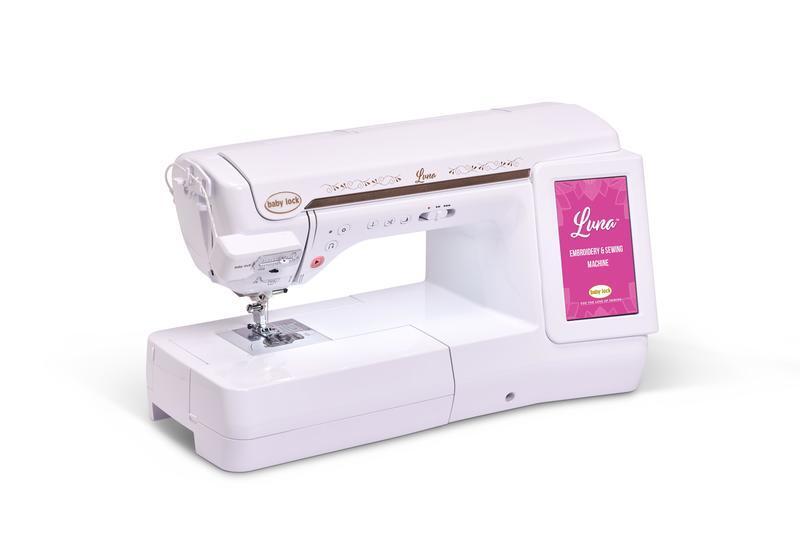

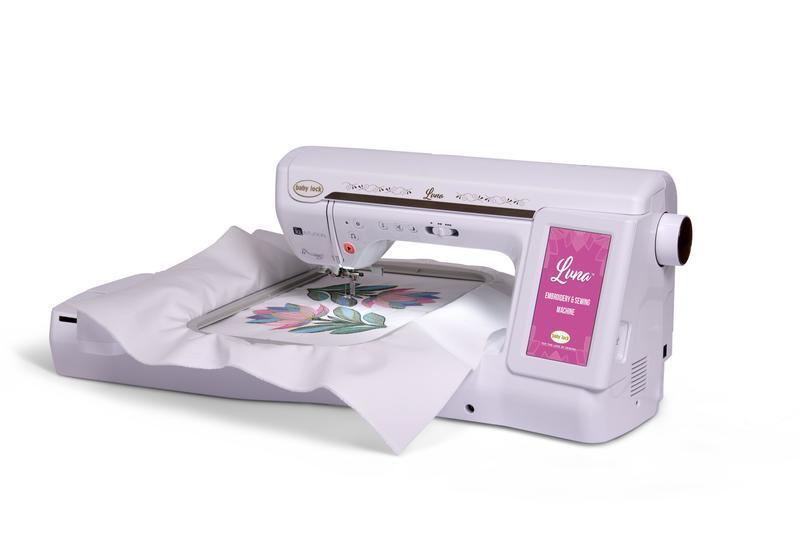

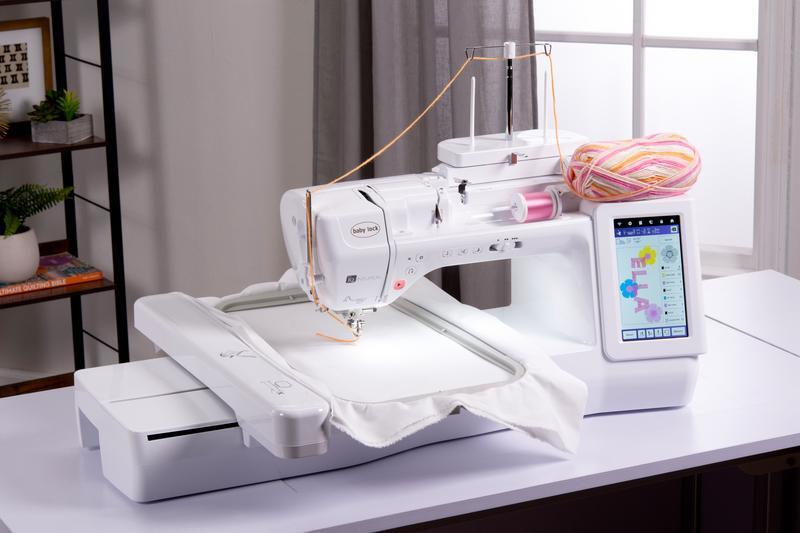

This is it shown as sewing ---------------This is it shown as embroidery
YES - it can do both

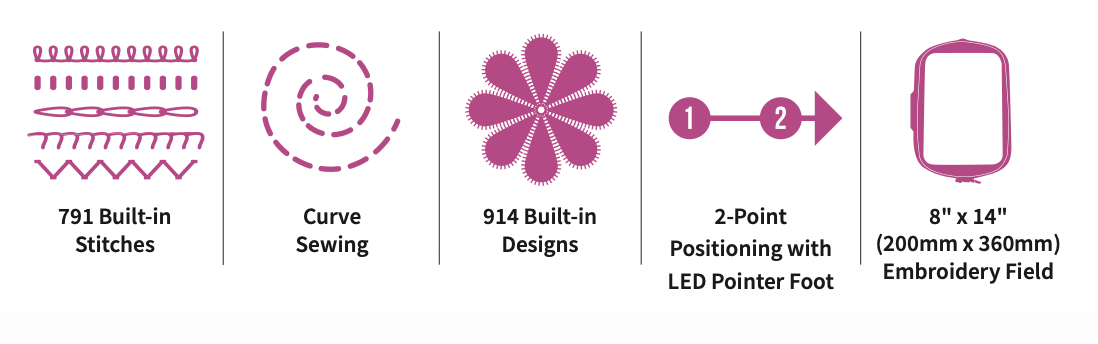

791 Built-In Stitches
With 791 built-in stitches, the sky is the limit. The
Luna boasts 179 utility stitches and 612 decorative
stitches, including 30 new decorative stitch patterns
plus Stitch Tapering.

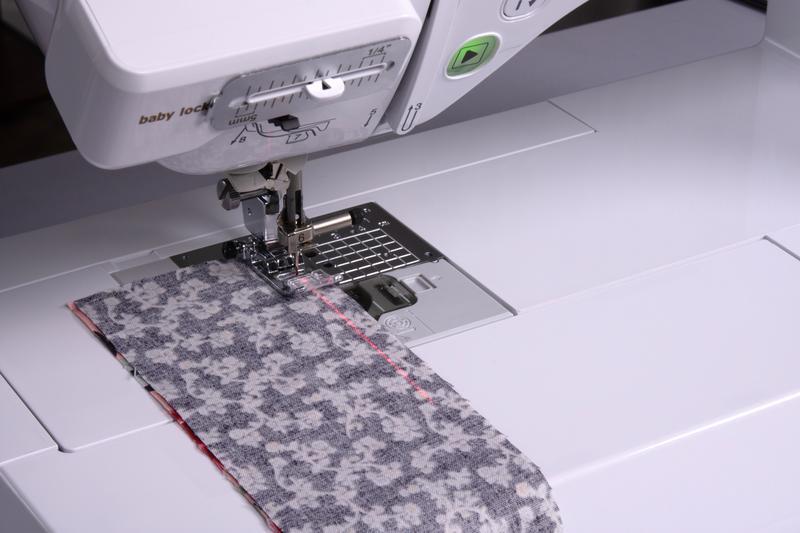

Laser Guideline Marker
This feature helps you accurately piece half-square
triangles, achieve a variety of accurate seam
allowances, and easily quilt fabric without having
to mark in advance.

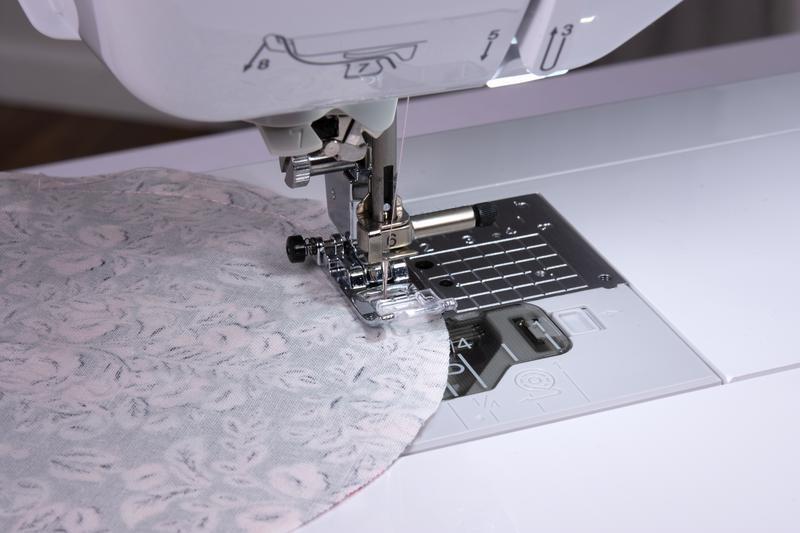

Innovative Curve Sewing
Simply touch the Curve Sewing key to make it
easier to sew curves. The presser foot pressure is
automatically adjusted to suit your fabric and the
tightness of the curve.
914 Built-In Embroidery Designs
You’ll always have something to embroider with
Luna’s vast selection of built-in designs. Categories
include Quilting, French Knot, Couching, 7 large
decorative fonts, 23 standard fonts, Crochet Lace,
3-D Applique, and more.

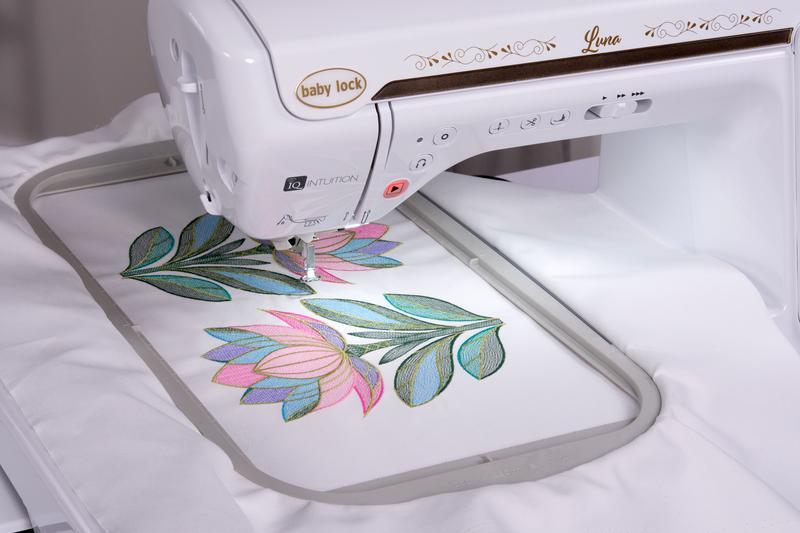

8” x 14” Embroidery Field
Embroider larger designs without having
to re-hoop your fabric with the 8" x 14"
(200mm x 360mm) hoop.

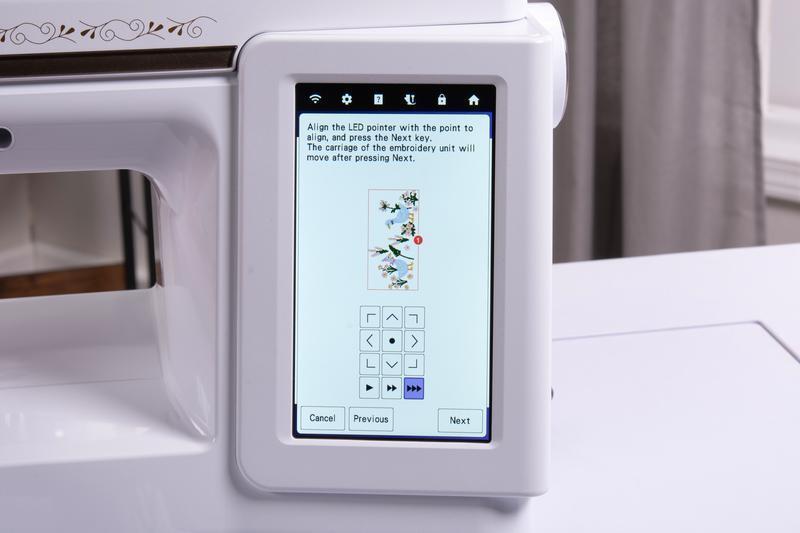

2-Point Positioning
Use the Needle Beam to preview the position of
your embroidery design. For projects requiring
placement or alignment, use the 2-point positioning
function to automatically move and rotate your
design into position.
Convenient Features:

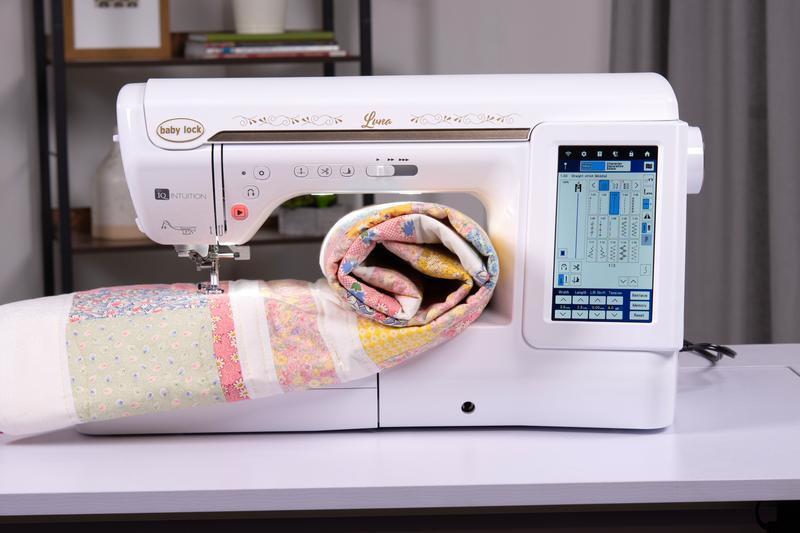

10" of work space to the right of the needle
10" workspace to the right of the needle
Sewing speed control
Needle plate with scale in inches and
millimeters
Free arm
Easy removal of metal needle plate
Convenient one-touch buttonholes
Quick-Set top-loading bobbin with sensor
Advanced Needle Threading System
Automatic thread cutter (with on/off
capability)
Pivot sew function
Matrix copy in embroidery
WLAN connectivity for machine updates
and design transfers
IQ Intuition Monitoring® App
Included Accessories
10 snap-on presser feet
Compact Digital Dual Feed Foot
Bobbins (10)
Hands-free knee lift
Guideline Marker with scale and cord
guide
Presser foot adaptor
Bobbin covers: cording, plain, and seam
guide marks
Straight stitch needle plate
Touch pen (stylus)
2 Thread spool stand for larger cones and
yarn couching
Embroidery foot “UH+” with LED pointer
Embroidery couching foot Y with guide
Alternate bobbin case and bobbin center
pin for use with prewound bobbins
Embroidery needle plate cover
8" x 14" (200mm x 360mm) Embroidery
Frame Set
5" x 7" (130mm x 180mm) Embroidery
Frame Set
|
SOLD SEPARATELY ACCESSORIES Stitch Regulator Quilting Foot with 3 Soles (BLA-SR) Digital Dual Feed Foot Soles: o Open Toe Sole (BLTY-OTDF) o Stitch in the Ditch Sole (BLDY-SDDF) o ¼" Sole with Guide (BLDY-QFDF) o Couching Sole (BLTY-CDF) 12" x 7" (300mm x 180mm) Magnetic Frame (EMF300) 7" x 5" (180mm x 130mm) Magnetic Frame (EMF180) Advanced Multi-Function Foot Controller (BLSA3-AMFC) Extension Table (BLMA-ET2) 8" x 8" (200mm x 200mm) Embroidery Frame Set (EF91) 6" x 6" (150mm x 150mm) Embroidery Frame Set (BLMA-150) 4" x 4" (100mm x 100mm) Embroidery Frame Set (EF74) |
SPECIFICATIONS
On-Screen Editing: Yes
USB Ports: 1
Built-in Fonts: 23
Number of Needles: 1
Embroidery Pattern Memory: Yes
Embroidery Speed: 850 SPM
Number of Included Hoops: 2
Rotation Capability: Yes
Combine Designs: Yes
Data Input Types: .pes, .phc, .dst
Frame Patterns: 140
Built-In Designs: 914
Maximum Embroidery Field: 8" x 14"
Machine Weight Only: 31 lbs (13.7kg)
Weight with Embroidery Unit: 39 lbs (17.5kg)
Throat Space: 10"
Total Number of Stitches: 792
Stitches per Minute: 850
Lateral and Diagonal Feeding: Yes
One-Step Buttonholes: 14
Built-in Utility Stitches: 179
Built-in Decorative Stitches: 613
Built-in Fonts: 5 sewing fonts
Presser Foot Type: Snap on
Needle Threader: Yes
Variable Speed Control: Yes
Programmable Needle Up/Down: Yes
Accessory Storage: Yes
Stitch Regulator: Optional (BLA-SR)
Extension Table: Optional (BLMA-ET2)
Included Feet: 10
Mirror Image Capability: Yes
Guide Beam: Yes
Free Arm Capability: Yes
Multiple Languages: 12
Bobbin Loading: Quick Set, Top Loading
Bobbin Size: Class 15
Knee Lift: Yes
Auto Needle Up/Down: Yes
Lateral and Diagonal Feeding: Yes
Thread Cutter: Automatic
Retractable Feed Dogs: Yes
Tension: Automatic
Maximum Stitch Length: 5mm
Maximum Stitch Width: 7mm
Number of Needle Positions: Variable
Touch Screen: Yes
Color Screen: Yes
Lighting: 4 LED lights
Screen Size: 7" diagonal
Machine Only Height: 11-7/32" (285mm)
Machine Only Width (side to side): 22-23/32" (577mm)
Machine Only Depth (front to back): 12-21/32" (310mm)
