Go From Good to Great Sewing
If you are sewing on a mechanical machine or an older computerized model, you are missing out on the benefits of modern technology. Our OPAL™ 690Q computerized sewing machine is extra-efficient with loads of built-in assistance to change the way you sew for the better! Let your Husqvarna Viking® OPAL™ sewing machine focus on delivering the best results while you relax and focus on the joy of sewing!
Modern Innovation
The unique EXCLUSIVE SENSOR SYSTEM™ technology automatically and continuously senses and adjusts as you sew any thickness of fabric for perfect even feeding.
Start/Stop Button – begin and stop sewing without the use of the foot control. Great for sewing rows of decorative stitches, buttonholes, sewing on buttons and winding bobbins.
The Automatic Thread Cutter is a true time-saver. It cuts the top and bobbin thread automatically.
The TouchScreen is easy to navigate and shows all your settings.
The Electronic Self-Adjusting Thread Tension sets the best tension automatically for all your sewing techniques and fabrics.

Generous Capability
Thanks to the Bobbin Thread Sensor, the machine stops sewing and alerts you when the bobbin thread is about to run out.
The generous 8" (200 mm) sewing surface and long arm makes it easy to sew large projects.
A large number of beautiful stitches for endless creative opportunities including 7 mm stitch width.
User-friendly Convenience
The Exclusive SEWING ADVISOR® feature optimizes your sewing with automatic settings.
3 LED lights reduce shadows while sewing.

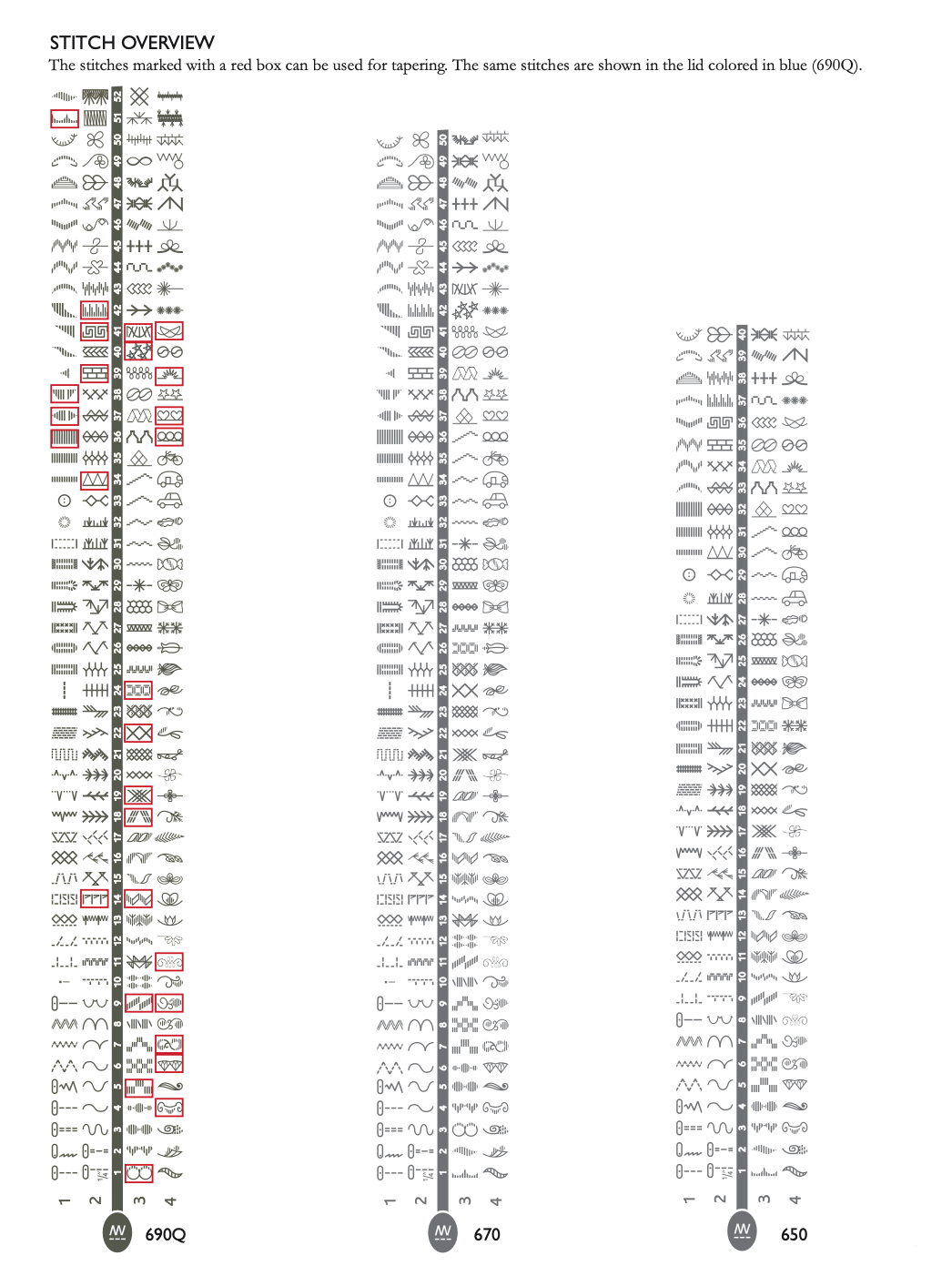

208 Stitches including:
7 mm stitches
Utility stitches
Quilt stitches
Decorative stitches

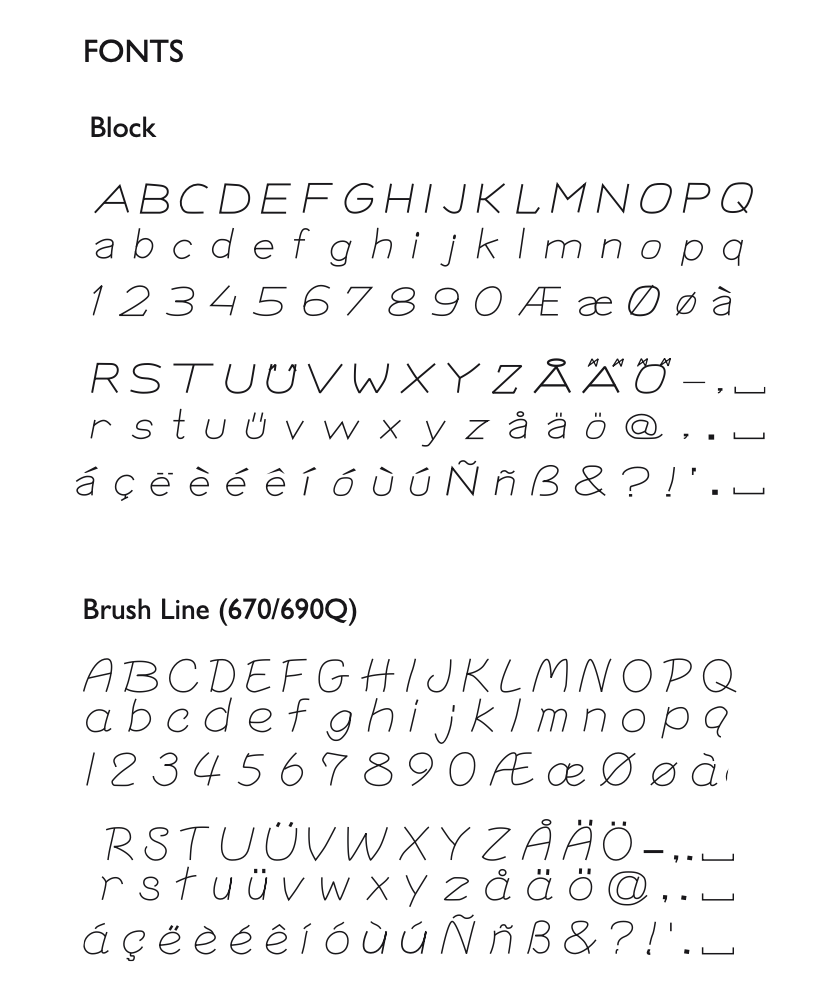

4 Programmable Alphabets





Specifications
EXCLUSIVE SENSOR SYSTEM™ Technology
Yes
Start/Stop Function (sew without foot control)
Yes
Automatic Thread Cutter
Yes
Exclusive SEWING ADVISOR® Feature
Yes
Bobbin Thread Sensor
Yes
Large TouchScreen Display
3'' (64 x 48 mm)
Electronic Self-Adjusting Thread Tension
Yes
Large Sewing Space
8" (200 mm)
Utility and Decorative Stitches
208
All Stitches (including stitches, letters, characters, etc.)
565
Programmable Fonts
4
LED Lights in 3 places
Yes
My Stitches Menu
12 Memories, 240 stitches
Stitch Selection
TouchScreen
Stitches on Screen in real size
Yes
Needle Positions
29

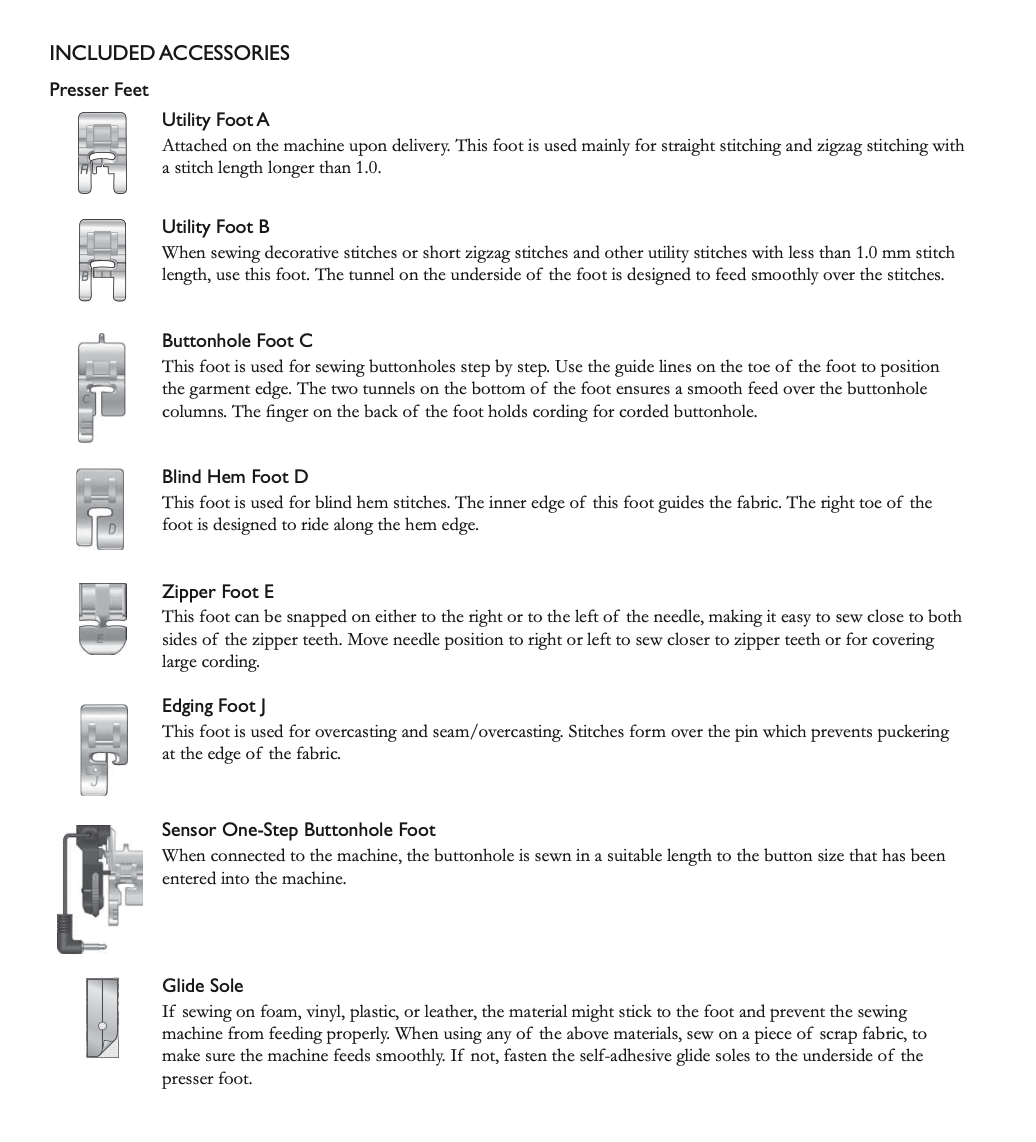

Snap-On Presser Feet Included
10
Buttonhole styles
7
Exclusive Sensor One-Step Buttonhole Foot
Yes
FIX Function
Yes
STOP Function
Yes
Needle Stop Up/Down
Yes
Stitch Width
7 mm
Twin Needle Safety and Stitch Width Safety
Yes
Electronic Speed Control
5 speeds
Instant and Permanent Reverse
Yes
Built-In Needle Threader
Yes
Bobbin Winds from the Needle
Yes
Built-In Spool Pins
2
Thread Cutters
3
Soft Cover
Yes
|
Additional Features
Tapering Feature
Pictobram Stitches
Automatic Thread Cutter
Bobbin Thread Sensor
Electronic Self-Adjusting Thread Tension
Save to "My Stitches"
Perfectly Balanced Buttonholes (PBB)
Exclusive Sensor One-Step Buttonhole Foot
Sew On Button Program
Monochrome Touchscreen with Stylus Included
Utility, Specialty Stitches, and Fonts
Start/Stop Function
Sensor Foot Pivot
Jam-Proof Rotary Hook
Permanently Lubricated
|
** You must register your warranty online after purchase
General
This warranty is made only to the first purchaser (the “Original Purchaser”) who acquires this product for his or her own personal/domestic use from an authorized HUSQVARNA VIKING® Dealer in the United States and Canada, unless otherwise prohibited by law (which may include the Province of Quebec), because we cannot control the quality of products sold by unauthorized dealers. We reserve the right to reject warranty claims for products purchased from unauthorized dealers, including unauthorized internet sites. This warranty is non-transferable to any subsequent owners. Service under the below warranties may be obtained by returning the product with this warranty document and proof of purchase to the authorized HUSQVARNA VIKING® Dealer from whom the machine was purchased. If, at the time of the purchase, the Original Purchaser resided within 50 miles/80 km of that dealer’s location, and the Original Purchaser subsequently moved to a residence more than 50 miles/80 km distant from that location, then the warranty service will be provided by the authorized HUSQVARNA VIKING® Dealer nearest to the Original Purchaser’s current residence. An authorized HUSQVARNA VIKING® Dealer may be located by visiting our web site at www.husqvarnaviking.com. All charges incurred in delivery of items for performance of warranty service and in returning items after warranty service has been completed must be paid by the Original Purchaser.
Parts and Conditions Not Covered by Warranty
This warranty is for household (non-commercial) use and does not cover conditions unrelated to the material or workmanship of the product. Such unrelated conditions include, but are not limited to: (a) damage caused by current or voltage other than that stamped on the nameplate of the product, if applicable; (b) damage resulting from the failure to provide normal maintenance; (c) failure to follow instruction for use of the product as stated in the owner’s manual; (d) any accident to, or misuse of, any part of the product; (e) any defects or damage caused by service or alteration by anyone other than HUSQVARNA VIKING® or an authorized HUSQVARNA VIKING® Dealer/Service Center; (f) sewing materials that may be corrosive to metal or finish; (g) normal wear and tear; and (h) negligence.
Limited 20-Year Warranty - Product Frame
The product frame is warranted to be free from manufacturing defects for a period of twenty (20) years from the date of purchase (or if purchased in California, then from the date of delivery). If any manufacturing defect appears in the product frame within twenty (20) years of purchase (or if purchased in
California, then from the date of delivery), we will provide free replacement parts, but at your cost for labor.
Limited 5-Year Warranty - Electronic/Electrical Parts
The electronic/electrical components are warranted to be free from manufacturing defects for five (5) years from date of purchase (or if purchased in California, then from the date of delivery) to the extent that if any defect is reported within this five-year period, SVP Worldwide will provide free replacement parts.
SVP Worldwide shall not be responsible for shipping and will only cover labor for the first year.
Limited 1-Year Warranty - Mechanical Parts and Adjustments
The parts of the product are warranted to be free from manufacturing defects for a period of one (1) year from the date of purchase (or if purchased in California, then from the date of delivery). If any manufacturing defect appears in these parts within (1) year of purchase (or if purchased in California, then from the date of delivery), we will repair or replace any part which proves to be defective from workmanship or material without charge to you for parts or labor.
Limitations on Relief:
In no event shall HUSQVARNA VIKING® be liable for special, incidental, or consequential damages based upon breach of this warranty, breach of contract, or strict liability. Some States/provinces (which may include the Province of Quebec) do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Where any term of this warranty is prohibited by such laws, it shall be null and void, but the remainder of the warranty shall remain in effect. All implied warranties or conditions, including the implied warranties of merchantability and fitness for a particular purpose, are limited to the duration of this limited warranty. Any oral or written description of the products is for the sole purpose of identifying the products and shall not be construed as an express warranty. Some States/provinces (which may include the Province of Quebec) do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State/province to State/province. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law (which may include the Province of Quebec).
In the United States, the Limited Warranty is given by SVP Sewing Brands, LLC, a Delaware corporation whose principal place of business is at 300 2nd Ave South, Nashville, TN, United States. In Canada, the Limited Warranty is given by SVP Canada, Inc., a Canadian corporation with offices located at 160 Elgin Street, Suite 2600, Ottawa, Ontario K1P1C3 CA.
If you would like a physical copy of this warranty, feel free to print this webpage, call our Customer Care team at the number above, or write us at the address above, and we would be happy to send you a copy.
If you have any questions regarding this warranty, or whether a dealer is an authorized HUSQVARNA VIKING® Dealer, please contact us at: Customer Care:
SVP Worldwide 1-800-474-6437 E-mail: customersupport@singer.com
300 2nd Ave South
Nashville, TN 37201
Or through our website: www.husqvarnaviking.com
