EMBROIDERY

SEWING
Imagine. Create. Shine.

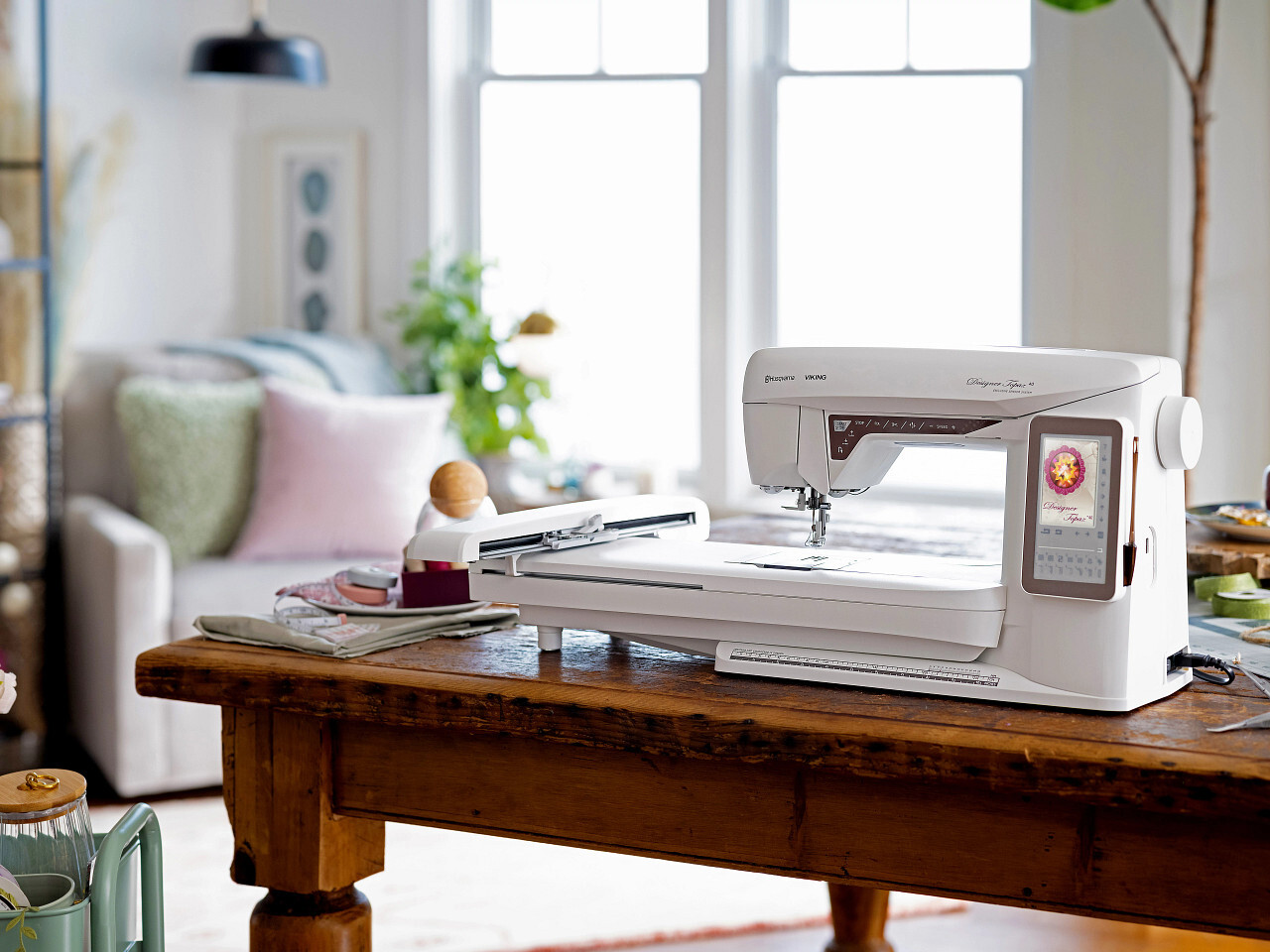

It’s magical the way sewing plus embroidery turns something ordinary into something extraordinary. With the DESIGNER TOPAZ™ 40 sewing and embroidery machine you also get the advantage of built-in assistance and time-savers to help you bring your ideas to life. Push your creativity to a completely new level. Expect fabulous sewing and remarkable embroidery!
Free HUSQVARNA® VIKING® Software To Download
Find your designs & pictures easily! View designs as thumbnail images, read different embroidery file formats, print catalogs, and more!
Quickfont Embroidery Software
Embroider unlimited font styles. Convert any TrueType™ font on your computer into an embroidery font with the HUSQVARNA® VIKING® QuickFont software available as a free do
Color Touch Screen
The Color Touch Screen lets you intuitively navigate through various screens for embroidery, editing, and sewing.
Basic Design Positioning
The Basic Design Positioning feature lets you join large embroideries with perfect placement every time.
Updatability
Internet updates ensure that your DESIGNER TOPAZ™ 40 sewing and embroidery machine is always up to date.
Additional Features
- Design Positioning
- Extended Dual Stitch Plate
- Electronic Self-Adjusting
- Thread Tension
- Free-Motion Sewing
- 100 built-in designs
- Automatic Thread Cutter
|
Specifications
Largest Hoop Size Available
240 x 150 mm (9 3/5" x 6")
Designs Included
150 built-in designs
Baste in Hoop
Yes
Built-In Stitches
208
Free-Motion Sewing
2 Modes: Free-Motion Floating, and Free-Motion Spring Action
Display Type
3.5" (70 x 53 mm) Full Color Touch Screen
Light System
3 LED
Needle Threader
Manual
Sewing Space to the Right of the Needle
200 mm (almost 8")
Top and Bobbin Thread Sensor
Yes
Machine Storage Included
Hard Cover
|

Whats Included:
- DESIGNER™ Jewel Hoop (240x150)
Presser feet:
- Utility Foot A
- Decorative Stitch Foot B
- Buttonhole Foot C
- Blind Hem Foot D
- Zipper Foot E
- Edging Foot J
- Embroidery/Darning Foot R
- Sensor One-Step Buttonhole Foot
- Glide Sole
More:
- Stylus
- Thread Net (2)
- Felt Pad (2)
- Screwdriver
- Seam Ripper
- Brush
- Large Spool Cap (attached on the machine at delivery)
- Medium Spool Cap (attached on the machine at delivery)
- Small Spool Cap
- Multipurpose Tool/Button Reed
- 6 Bobbins (1 in machine at delivery)
- USB embroidery stick (1 GB)
- Software to download
- Soft Cover
- Foot Control
- Power Cord
- Needles
- Embroidery Thread
- Pieces of fabric and stabilizer
- DESIGNER TOPAZ™ 40 Sampler book
- Microfiber Cloth
SVP Worldwide / SVP Worldwide - Canada Limited Warranty / Garantie Limitée (Owner’s Copy - Retain this copy for your files)
General
This warranty is made only to the first purchaser (the “Original Purchaser”) who acquires this product for his or her own personal/domestic use from an authorized HUSQVARNA VIKING® Dealer in the United States and Canada. They are non-transferable to any subsequent owners. Service under the below warranties may be obtained by returning the product with this warranty document and proof of purchase to the authorized HUSQVARNA VIKING® Dealer from whom the machine was purchased. If, at the time of the purchase, the Original Purchaser resided within 50 miles/80 km of that dealer’s location, and the Original Purchaser subsequently moved to a residence more than 50 miles/80 km distant from that location, then the warranty service will be provided by the authorized HUSQVARNA VIKING® Dealer nearest to the Original Purchaser’s current residence. An authorized HUSQVARNA VIKING® Dealer may be located by visiting our web site at www.husqvarnaviking.com. All charges incurred in delivery of items for performance of warranty service and in picking up items after warranty service has been completed must be paid by the Original Purchaser.
Parts and Conditions Not Covered by Warranty
This warranty is for household (non-commercial) use and does not cover conditions unrelated to the material or workmanship of the product. Such unrelated conditions include, but are not limited to: (a) damage caused by current or voltage other than that stamped on the nameplate of the product, if applicable; (b) damage resulting from the failure to provide normal maintenance; (c) failure to follow instruction for use of the product as stated in the owner’s manual; (d) any accident to, or misuse of, any part of the product; and (e) any defects or damage caused by service or alteration by anyone other than HUSQVARNA VIKING® or an authorized HUSQVARNA VIKING® Dealer/Service Center; and (f) sewing materials that may be corrosive to metal or finish.
Limited 20-Year Warranty Product Frame
The product frame is warranted to be free from manufacturing defects for a period of twenty five (20) years from the date of purchase. If any manufacturing defect appears in the product frame within twenty (20) years of purchase, we will provide free replacement parts, but at your cost for labor.
5 year limited electronic/electrical warranty
The electronic/electrical components are warranted to be free from manufacturing defects for five (5) years from date of purchase to the extent that if any defect is reported within this five-year period, VSM Group AB will provide free replacement parts. VSM Group AB shall not be responsible for shipping and will only cover labor for the first year
Limited 1-Year Warranty - Parts and Adjustments
The parts of the product, other than those subject to normal wear and tear, are warranted to be free from manufacturing defects for a period of one (1) year from the date of purchase. If any manufacturing defect appears in these parts within (1) year of purchase, we will repair or replace any part which proves to be defective from workmanship or material without charge to you for parts or labor.
Limitations on Relief:
In no event shall HUSQVARNA VIKING® be liable for incidental or consequential damages. Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any implied warranty, including the implied warranty of merchantability and fitness for any purchase, is limited to the duration of this limited warranty. Some states/ provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state/province to state/province.
If you have any questions regarding this warranty, please contact us at:
SVP Worldwide Customer Care 1714 Heil Quaker Blvd Suite 130 LaVergne, TN 37086 1-800-446-2333
Register your new product online at mySewnetTM
